Embroidery Digitizing Problems: How to Fix Common Issues
It’s worth saying that digitizing is the main reason behind a professional-looking embroidery design. Digitizing software can transform any image into needle art and assist you in selecting the appropriate stitches and fabric. However, this technique is not without challenges.
Embroidery digitizing also has some red zones, if left unchecked, it can worsen final embroidery results. In this article, we aim to provide a quick overview of common embroidery digitizing problems faced by digitizers and practical solutions to get them off.
Introduction
Digitizing plays a significant part in today’s high demand for personalized embroidery. It permits the creation of any design, from simple to intricate, using digitizing software. However, various hurdles in this process must be solved to retain embroidered perfection, a professional appearance, and client trust. Some commonly faced embroidery digitizing problems include poor stitch quality, inconsistent underlay, broken or frayed thread, etc. Complete knowledge of embroidery software
In addition, puckering, missed or jump stitches, limited file compatibility and thread bleeding also cause frustration for digitizers and embroiders. These digitizing issues are due to a lack of embroidery digitizing skills and software knowledge. If you are facing any of those issues, we are here to provide solutions to overcome common embroidery digitizing errors. This is because an error-free digitized pattern is simple to stitch and offers excellent value for money and quality. For more about the thread. You can visit: Machine Embroidery Thread
Common problems in embroidery digitizing, their causes, and solutions
Have a look at the most frequently occurring digitizing issues with causes and tricks to solve them.
1- Poor Stitch Quality
The main goal of embroidery digitizing is to enhance precision and professionalism. However, a lack of knowledge about stitch types, angles, and density can lead to poor stitch quality. It is a common issue encountered by digitizers that impacts the look of embroidery.
If you want to know Digitizing Techniques for Every Material then you can visit: Digitizing Techniques for Every Material
Causes:
Uneven stitches from an embroidery machine indicate improper stitch usage or a mismatch between stitch density and the fabric. In addition, using low-quality cheap thread and fabric with incorrect tension also distorts the stitch quality.
Solutions:
Here are some tricks to maintain stitch quality in embroidery digitizing:
- Learn to adjust stitch density and underlay based on fabric while digitizing a design to maintain stability
- Select the desired stitch type, let’s say satin or running stitch from the default stitch setting from the machine
- Make use of high-quality thread as your project demands.
- Always test and calibrate thread tension on an embroidery machine. Lock the setting where the machine starts making even stitches.
- Use appropriate stabilizers that can support the fabric and design
2- Puckering
Puckering, a typical problem in embroidery, happens when material twists or wrinkles along the stitches.
Causes:
Puckering happens when excessive stitches are applied to a thin fabric. It also occurs due to:
- Improper hooping
- Insufficient push-pull compensation
- Material is not stabilized with a suitable stabilizer
- Wrong stitch/fill order, direction, and angle
- Tension adjustment is not correct
Solutions:
- Reduce stitch density, especially in large fill areas, and change the direction of the fill stitch.
- To avoid puckering, double the amount of stabilizers like cut-away or tear-away based on fabric needs.
- When removing tear-away from t-shirts, avoid pulling them from the back. It will distort the stitches. Instead, use a sharp scissor for fine trimming.
- Use cut-away for complex fills and satin over stretchy and knitwear.
- Set push-pull compensation according to stitch type.
- Avoid over-tightening the fabric material when hooping
- Try floating a sheet of stabilizer under a hoop

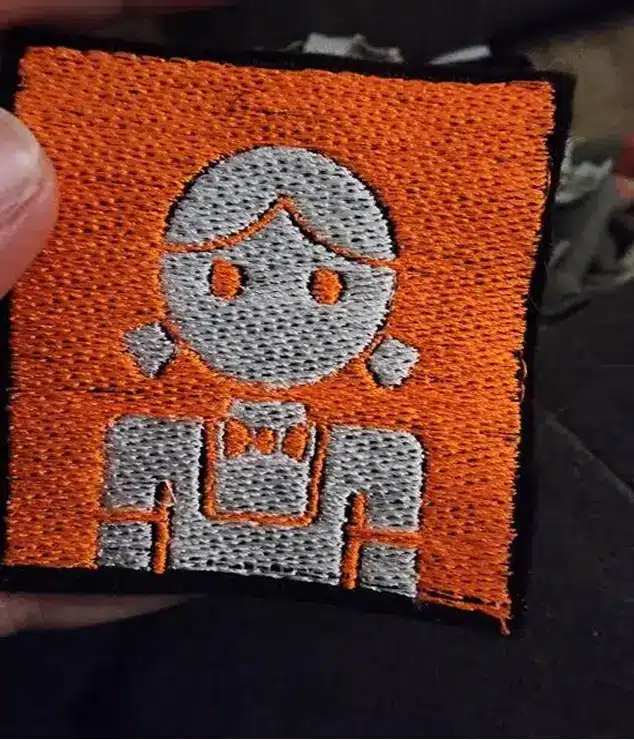

3- Distortion or gaps between stitches
Poorly digitized embroidery designs leave gaps, distorted areas, lack of accuracy, and puckering. It’s normal to have digitization problems if you’re a beginner. The following elements have been associated with poor-quality digitized embroidery.
Causes:
Auto-digitizing, if not done correctly, badly impacts the embroidery quality. Sometimes you cannot capture the exact detail of a design with auto digitizing which distorts the actual look. You may also get distorted embroidery design:
- If the design is too scaled, it alters the stitch pattern.
- All stitches are in the same direction or placed closely causing push-pull distortion.
- The wrong push-pull compensation value may leave gaps between areas of fills and registration.
Solutions:
1- According to digitizing experts, a design should never be scaled beyond 20 or 30%. So if a design requires resizing, the best tip is to adjust the stitch count manually.
2-If you are an expert digitizer, turn on the auto-digitizing feature. Otherwise, learn to digitize designs manually to avoid errors.
3- Do a test stitch before embroidering the actual design. If you notice distortion or gaps between fills, adjust the push-pull setting.
4- Pay attention to the start and stop positions, as they can change the stitch direction or angle. If your design has start and stop positions that point in the same direction, the results will be distorted. So they must go in the opposite direction to avoid gaps and distortion in the final design.
4- Broken or Fraying Threads
Broken or fraying threads are commonly caused by using low-quality thread or old needles. If this issue persists after utilizing appropriate supplies, the design may not have been properly digitized.
Causes:
Other than using low-quality thread and the wrong needle size, poor digitizing also causes broken threads. For example:
- If you haven’t set the correct tension between the upper and bobbin thread
- Inadequate underlay according to design type
- Jump stitches are too long and placed in areas of higher tension
- The design is too dense for the needle to penetrate
- Holes or gaps between stitches
- Frequent shifts in the stitch path
Solutions:
- Use high-quality embroidery threads like polyester or rayon.
- Choose the suitable needle according to thread, fabric, and design nature.
- Use adhesive spray or a suitable stabilizer to avoid shifting fabric and. gaps.
- Try to minimize jump stitches and refer to a reputable digitizer for outsourcing embroidery.
- Lower the machine speed for delicate designs.
5- Excessive Jump Stitches
If your embroidery machine takes too long to complete a design, it means there are excessive jump stitches. You will see too many visible threads between design elements that destroy the final design look.
Causes:
Poor design planning, inefficient pathing, and color sequencing are common causes of having unnecessary jump stitches. They result in misuse of thread and waste of time, especially when embroidering a complex design.
Solutions:
- Optimize design path in digitizing software
- Use run stitch (a digitized line) to connect two objects of the same colors far away. The color of that run stitch should not be similar to the object color.
- Trim jump stitches manually if necessary. But it is labor-intensive.
- Most modern computerized embroidery machines have an auto thread trimming feature. Make sure you have activated the “thread trimming” for precise trimming
6- Limited file compatibility
Sometimes a design fails to load properly on the machine. The root cause of this issue is the incompatibility of the digitized file format with your machine.
Causes:
If the design is auto-digitized, it is limitedly compatible with embroidery machines. Secondly, using outdated software for digitizing designs causes design loading issues.
Solutions:
- Save designs in machine-compatible formats as your client demands like DST, PES, or EXP.
- Update digitizing software on time to ensure its compatibility.
- For flexibility, you must keep file format converter tools and software like Wilcom TrueSizer. It ensures your clients get the design file in the desired format.
Tricks to prevent common digitizing problems
Here are some tricks for having a seamless embroidery digitizing experience:
- Sufficient knowledge of embroidery tools and terminologies is the first step to mastering digitizing.
- Choose reliable digitizing software like Wilcom or Hatch. And get a good grip on their auto-digitizing, push-pull, and trimming features.
- Invest in standard digitizing tools and materials for precise embroidery
- Use premium embroidery threads, stabilizers, and needles suitable for design.
- Plan the design appropriately, including start and end points, color sequence, jump stitch, stitch density, tension, and thread direction.
- Perform a test stitch to evaluate the design setting before sending it to clients.
- Make a habit of cleaning your embroidery machine regularly to avoid technical errors.
- Keep learning about embroidery and digitizing techniques online or through workshops.A complete guide about stabilizers
Conclusion
It is important to address the embroidery digitizing problems to keep quality, and accuracy in embroidery. We hope this blog will help you find the root causes and solutions of common digitizing errors that disrupt your digitizing flow. Remember that digitizing is a technique that is evolving with the latest technology. Keeping up with the latest digitizing equipment and techniques can help you become an embroidery digitizing expert. Don’t forget to share about digitizing issues you face and how you will troubleshoot them.
FAQs
What stabilizer works best for stretchy fabrics?
Try to use cut-away for complex fills and satin over stretchy and knitwear.
How does digitizing cause broken or fraying threads?
Thread breaks occur when tension and underlay stitches are not properly placed. Changing the stitch path, leaving spaces between stitches, and using the incorrect needle for a dense design can all lead to broken and frayed thread.
Why does my machine produce a distorted design?
If your embroidery design has some distorted areas, it may be due to the following reasons:
- The design is too much scaled, and it alters the stitch pattern.
- All stitches are in the same direction or placed closely causing push-pull distortion.
- The wrong push-pull compensation value may leave gaps between areas of fills and registration.
How to remove unwanted jump stitches while digitizing a design?
Try modifying the design path in digitizing software. Create a run stitch (a digitized line) to connect two objects of the same colors far away. However, the color of that run stitch should be opposite to the object color.
